Pinarello Seat Post Mount for Standard Quarter-Turn

Pinarello Seat Post Mount for Standard Quarter-Turn

$34.99
$34.99
Shipping calculated at checkout.

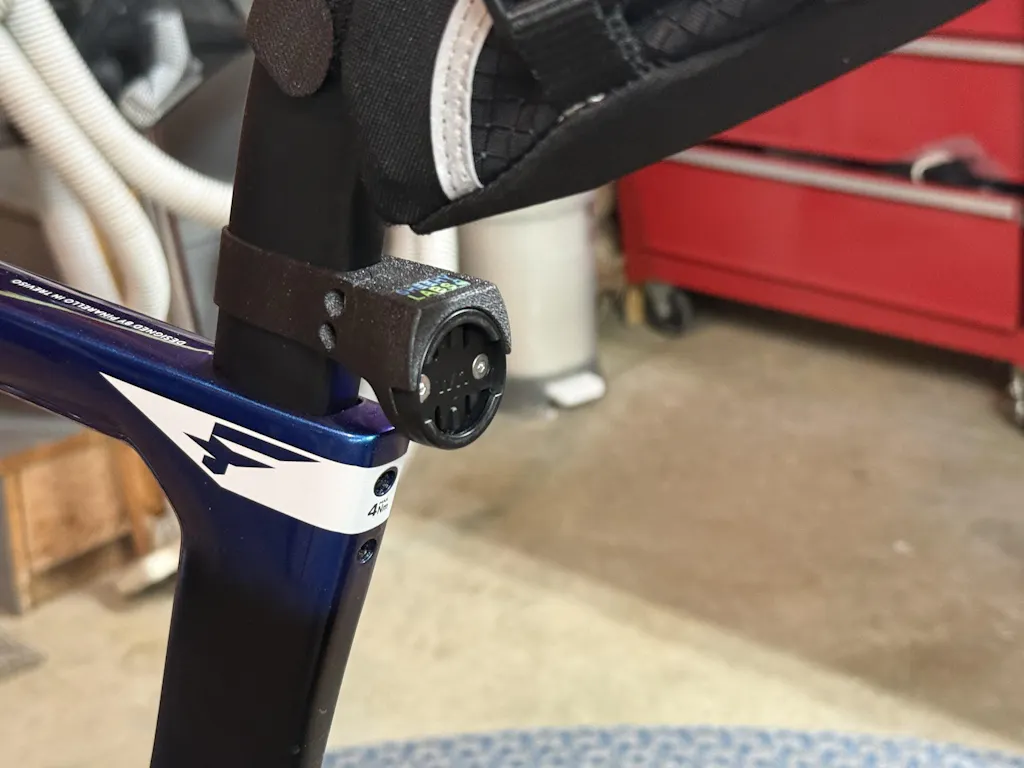

This mount allows you to rigidly attach your Garmin Varia (standard unit without the camera), Wahoo Trackr, Bryton Gardia, Magene L508, Outbound Lighting Blade Taillight and other standard quarter-turn devices to your seat post. Please select your Pinarello bike model from the list.

Part Number:
VS-PN-XXX
Description

This mount allows you to rigidly attach your Garmin Varia (the one without the camera), Wahoo Trackr, Bryton, Magene, Outbound Lighting Blade Taillight and others to your bike's seat post. The mount uses the standard quarter turn system found on many devices.

This is one of the lightest and most aerodynamic mounts on the market! This product is proudly designed and manufactured in the USA. It is precision printed with fiber reinforced nylon that makes it both durable and flexible. The matte black finish looks great on any bike.

Each unit comes neatly boxed in plastic-free packaging and includes a 2mm hex wrench and extra stainless steel screws (because those things are easy to lose when you drop them).
Compatibility

This unit is designed specifically for Pinarello bicycles. Please select your bike model from the drop down list.

Compatible with the following non-camera radar units:

  • Garmin Varia RearVue 820, RTL510, RTL515, RTL516 and RVR315
  • Wahoo Trackr
  • Outbound Lighting Blade Taillight
  • Bryton Gardia - you will need to rotate the quarter turn insert 90 degrees
  • Magene L508 - you will need to rotate the quarter turn insert 90 degrees
  • CYCPLUS bike radar tail light
  • iGPSport SR mini and SR30 - you will need to rotate the quarter turn insert 90 degrees

Sheehy Labs mounts use a Wahoo branded quarter turn insert. It is a durable insert compatible with all of the radar units listed above; however, the radar unit will only install by turning it clockwise.
Specifications

Screws: Low profile M3 x 10mm hex head stainless

If you are unsure of what model you need, use the table below to double check your seat post dimensions.
Installation

Easy to install.  No need to remove your seat post!  Just remove the two preinstalled stainless screws using the included 2mm allen wrench, open the mount and wrap it around the seat post.  You might have to give it a bit of squeeze to line up the screws with the holes - they go in at a 45 degree angle which provides excellent clamping strength.  Tighten the mount until the gap is closed and then tighten some more to ensure the mount doesn't slide on the post. The mount will not break, but be careful not to strip the head of the screws. Try not to use a ball-end allen key as they don't work well with the small screws. Installation takes about a minute!
Guarantee

We strive for 100% customer satisfaction and our customer reviews back up our commitment. If you ever have a problem with your mount then please email us at support@sheehylabs.com. We will make it right.
